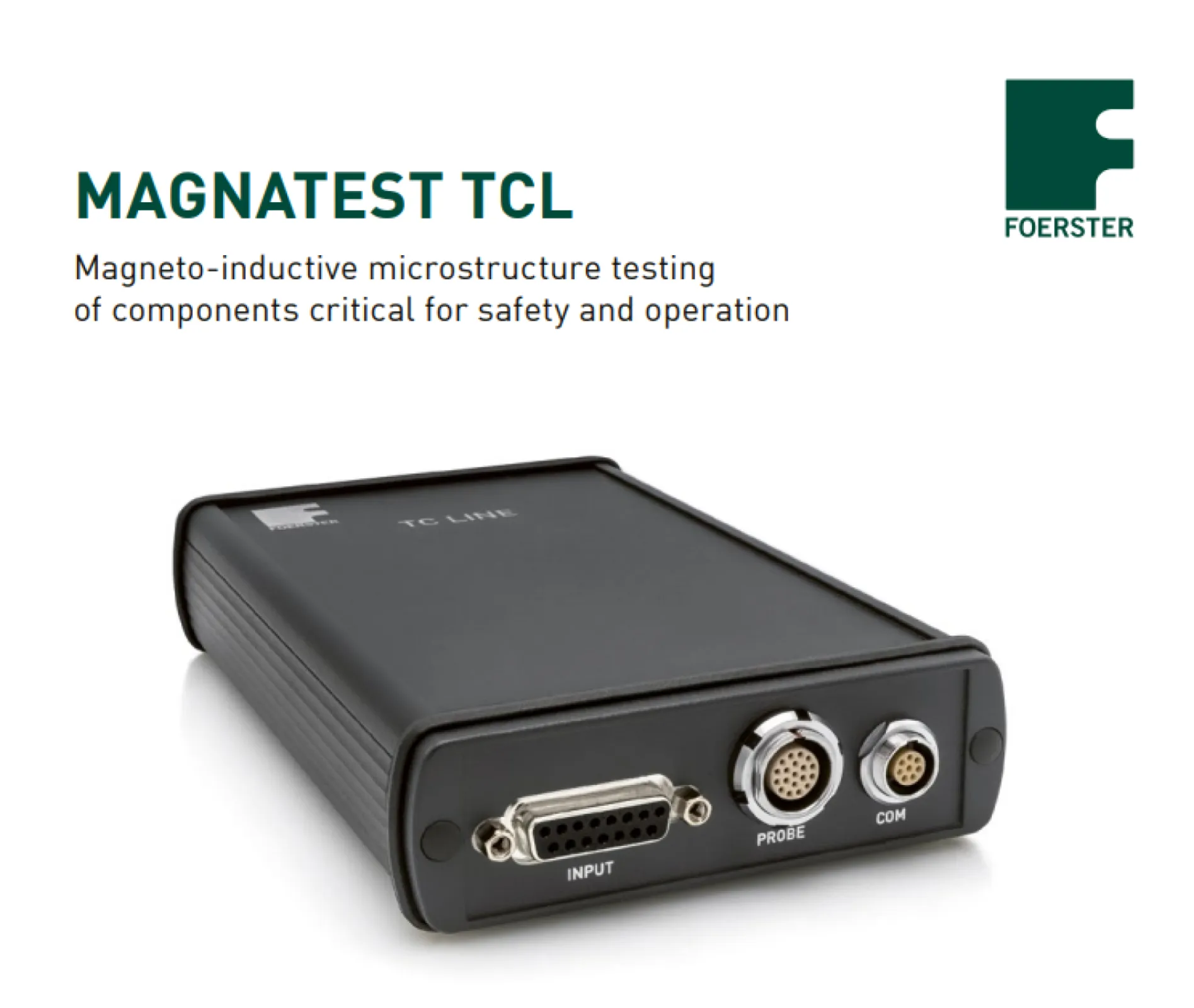

The FOERSTER MAGNATEST TCL is a compact and intelligent test channel line designed for magneto-inductive testing of safety-critical components, particularly for material and microstructure inspection in series production. It enables fully automated, non-destructive 100% inspection of metallic components and can also be used for manual quality assurance applications, such as laboratory testing. The system is especially suitable for detecting material mix-ups, heat treatment variations, hardness-related structural differences, and other microstructural deviations that may affect component reliability and process stability.

The MAGNATEST TCL consists of the TCL test channel and a PC-based testing software environment, with optional industrial PC and interface modules for automated line integration. Its compact design allows installation either in an equipment cabinet or directly in the production line, helping to keep cable lengths short between the sensor system and the test channel and thereby improving test quality. With an intuitive touch-optimized software interface, parameter setup wizard, automatic probe recognition, broad frequency range from 4 Hz to 20 MHz, fundamental and harmonic evaluation, PLC triggering options, password protection, graphical result display, and reporting functions, MAGNATEST TCL provides a robust and efficient solution for repeatable, traceable, and process-integrated component testing.
